Different Crucible Product offered

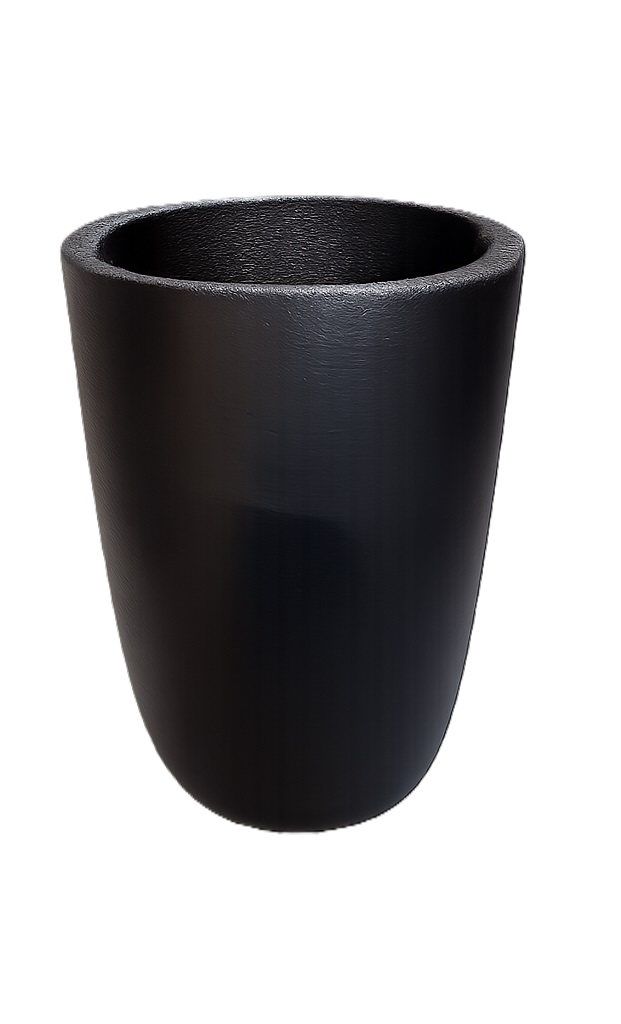

Sr. No. Model Height (mm) Outside Diameter Brimful Water Capacity Approx. Brass Melting Capacity
Top Bottom
(mm) (mm) (Kg) (Kg)
1 ARC-18 260 230 150 5.10 40.00
2 ARC-20 275 230 150 6.10 48.00
3 ARC-25 290 230 150 6.90 54.00
4 ARC-30 330 282 170 10.00 79.00
5 ARC-35 360 282 170 11.00 87.00
6 ARC-40 385 282 170 12.00 95.00
7 ARC-50 340 294 195 11.00 87.00
8 ARC-60 375 295 195 12.00 95.00
9 ARC-70 405 295 195 13.00 102.00
10 ARC-75 390 330 230 16.00 126.00
11 ARC-80 415 330 230 18.60 146.00
12 ARC-90 445 330 230 19.10 150.00
13 ARC-100 435 355 245 23.00 181.00
14 ARC-110 475 355 245 24.50 193.00
15 ARC-120 460 375 255 26.00 205.00
16 ARC-130 480 375 255 26.80 211.00
17 ARC-160 455 385 230 27.50 217.00
18 ARC-175 475 385 230 28.80 227.00
19 ARC-180 500 385 230 30.60 241.00
20 ARC-185 540 385 230 34.00 268.00
21 ARC-186 570 385 230 36.80 290.00
22 ARC-187 590 385 230 38.50 303.00
23 ARC-188 610 385 230 39.90 314.00
24 ARC-190 580 385 230 43.30 341.00
25 ARC-200 502 400 290 33.50 264.00
26 ARC-201 540 400 290 37.00 291.00
27 ARC-207 620 385 230 40.80 321.00
28 ARC-210 545 430 260 38.30 302.00
29 ARC-216 575 400 290 40.00 315.00
30 ARC-225 570 430 260 40.60 320.00
31 ARC-234 610 400 290 43.12 340.00
32 ARC-240 595 430 260 43.20 340.00
33 ARC-250 620 430 260 46.10 363.00
34 ARC-251 560 455 250 43.00 339.00
35 ARC-255 590 455 250 48.00 378.00
36 ARC-260 645 430 260 48.90 385.00
37 ARC-265 620 455 250 49.00 386.00
38 ARC-280 640 455 250 50.20 395.00
39 ARC-300 565 430 260 43.14 324.20
40 ARC-325 590 480 280 55.60 438.00
41 ARC-351 635 485 280 59.50 469.00
42 ARC-355 670 485 280 73.00 575.00
43 ARC-365 695 485 280 75.00 591.00
44 ARC-375 720 485 280 78.00 614.00
45 ARC-380 745 485 280 80.00 630.00
46 ARC-400 680 545 315 89.00 701.00
47 ARC-405 710 545 315 91.00 717.00
48 ARC-500 690 581 345 94.50 744.00
49 ARC-510 720 581 345 98.00 772.00
50 ARC-555 745 581 345 102.00 803.00
51 ARC-650 766 581 345 124.00 977.00
52 ARC-675 810 581 345 126.00 992.00
53 ARC-710 830 581 345 133.00 1047.00
54 ARC-715 870 581 345 139.00 1095.00
55 ARC-810 910 581 345 145.00 1142.00

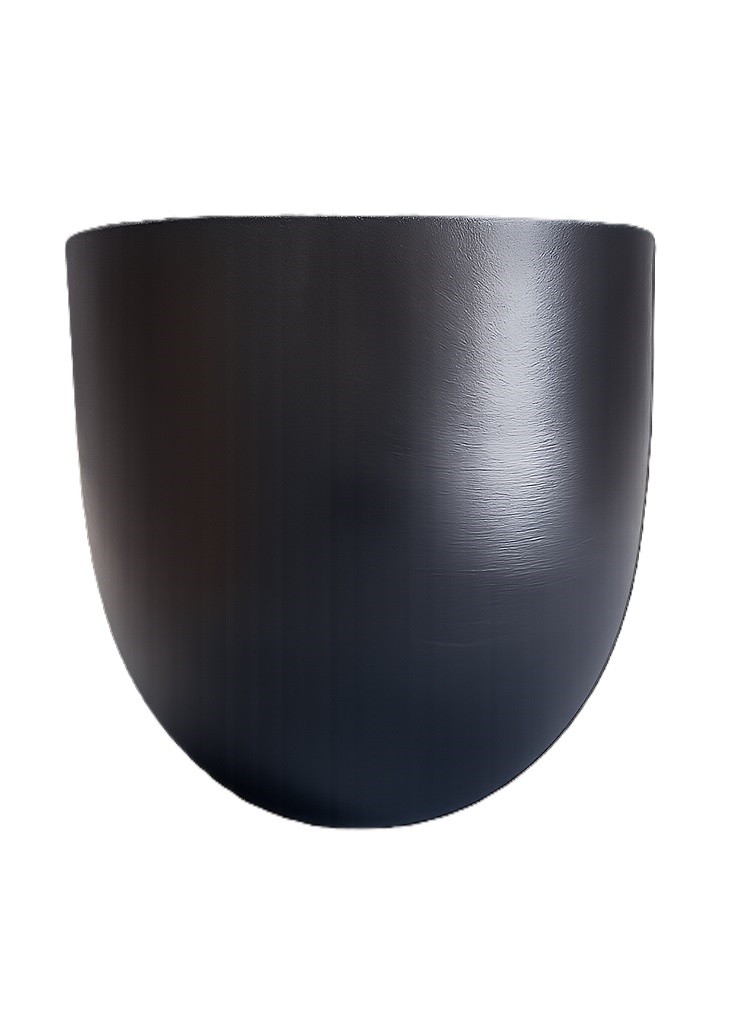

Sr. No. Model Height (mm) Outside Diameter Brimful Water Capacity Approx. Al Melting Capacity
Top Bottom
(mm) (mm) (Kg) (Kg)
1 BRC-164 310 530 315 26.10 63
2 BRC-166 405 530 315 45.20 110
3 BRC-167 455 530 315 52.30 127.00
4 BRC-168 500 530 315 59.80 145.00
5 BRC-171 605 530 315 75.00 182.00
6 BRC-202 505 625 355 80.00 194.00
7 BRC-302 645 625 355 110.00 267.00
8 BRC-401 715 625 355 124.00 301.00
9 BRC-402 835 625 355 148.50 361.00
10 BRC-403 860 625 355 154.00 374.00
11 BRC-502 910 625 355 163.50 397.00
12 BRC-248 750 780 460 222.00 539.00
13 BRC-263 900 780 460 255.00 620.00
14 BRC-264 1050 780 460 306.00 744.00

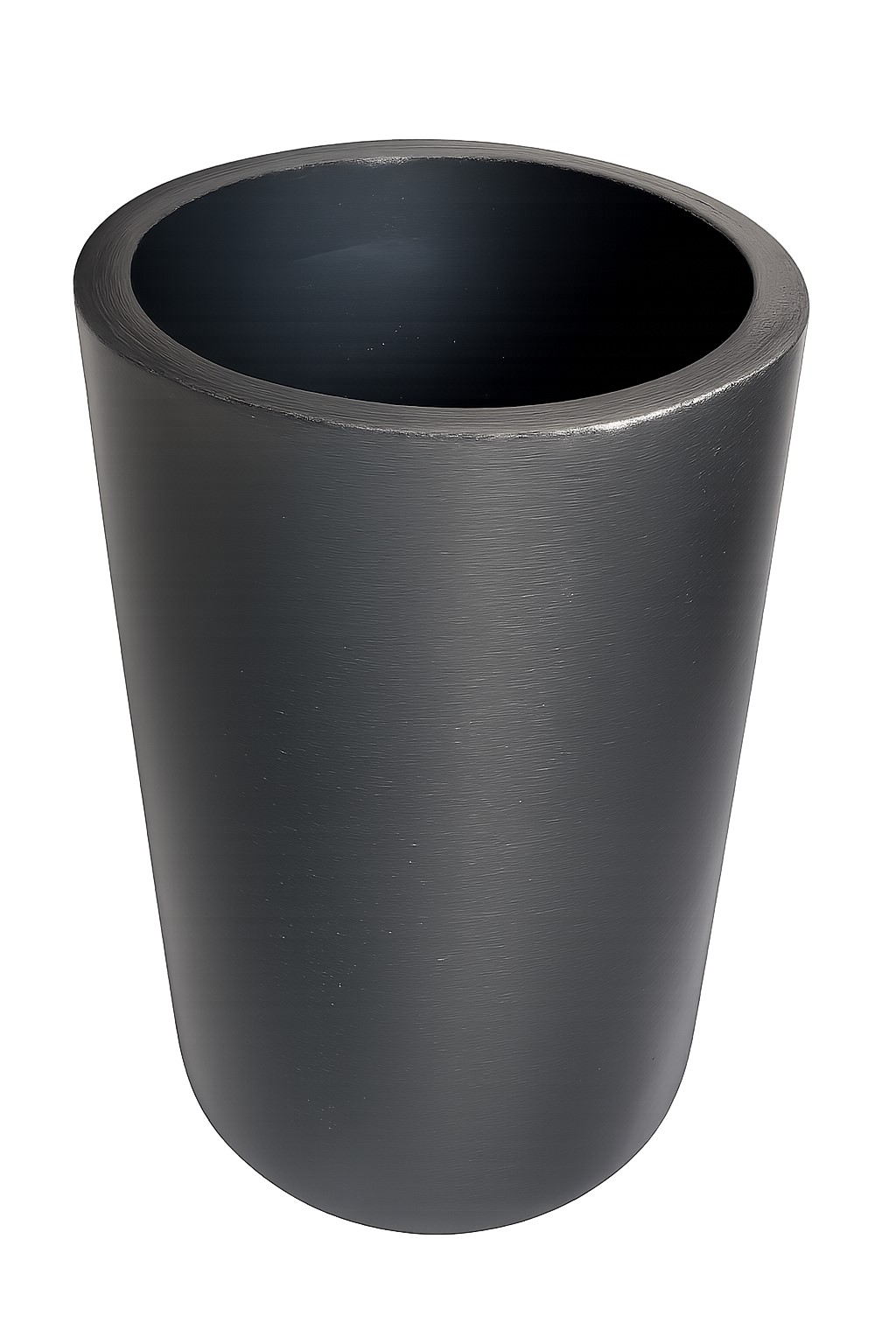

Sr. No. Model Height (mm) Outside Diameter Brimful Water Capaciy Approx. BrassL Melting Capacity
Top Bottom
(mm) (mm) (Kg) (Kg)
1 BUC-77 415 530 315 35.00 00.00
2 BUC-126 455 530 315 45.00 00.00
3 BUC-127 500 530 315 50.00 00.00
4 BUC-131 475 545 355 50.00 00.00
4 BUC-151 525 555 355 65.00 00.00
5 AC-356 670 485 280 60.00 00.00
Sr. No. Model Height (mm) Outside Diameter Brimful Water Capacity Approx. Brass Melting Capacity
Top Bottom
(mm) (mm) (Kg) (Kg)
1 TRC-175 475 385 230 25.30 199.00
2 TRC-750 565 430 280 32.70 258.00
3 TRC-510 720 581 345 98.00 772.00
4 TRC-400 620 385 230 34.90 275.00
5 TRC-355 645 475 315 52.90 417.00
6 TRC-843 675 455 255 44.70 352.00
7 TRC-982 805 440 295 66.00 496.00
8 TRC-12 950 440 295 80.00 670.00
9 TRC-89 810 581 345 101.50 799.00

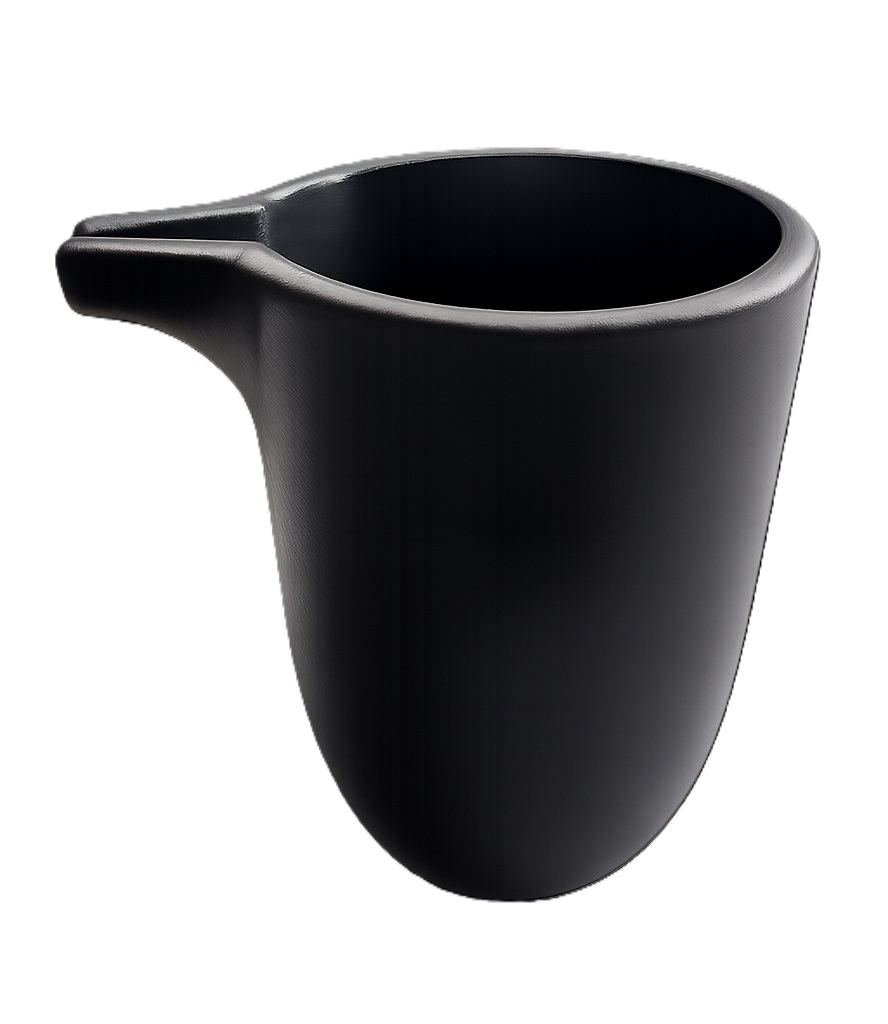

Sr. No. Model Height (mm) Outside Diameter Brimful Water Capacity Approx. Brass Melting Capacity
Top Bottom
(mm) (mm) (Kg) (Kg)
1 TRC-287 605 530 315 59.70 145.00
2 TRC-387 632 616 355 93.00 226.00
3 TRC-412 801 616 355 131.00 319.00
4 TRC-587 900 780 460 226.30 549.00
5 TRC-264 1050 780 460 248.00 602.00

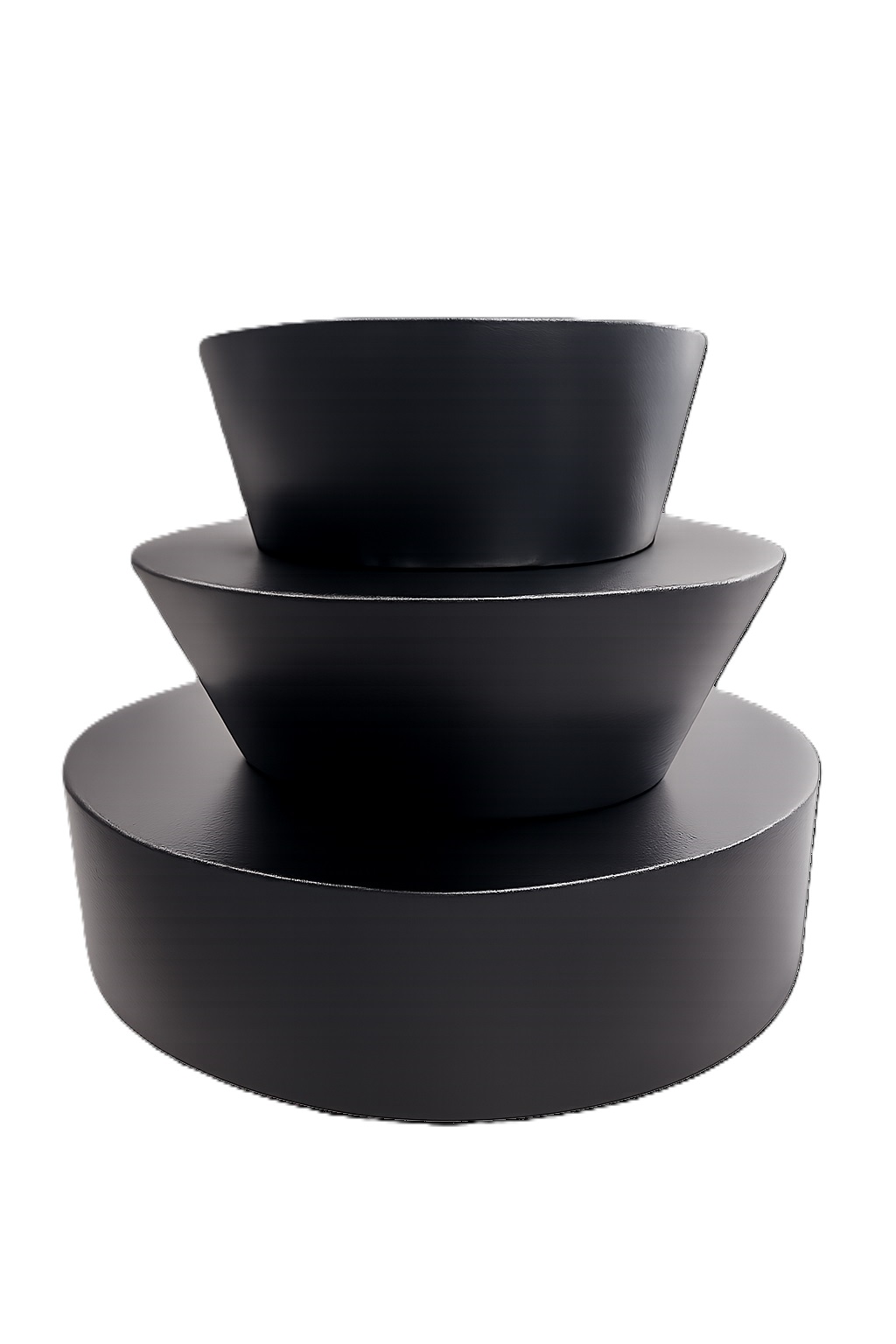

Sr. No. Type Height Top OD Bottom OD ARC BRC TRC
1 RAC-284/125 125 284 230 160, 175, 180, 200, 205, 230, 250, 255, 325 175, 400
2 RAC-311/125 125 311 250 300, 325, 351, 355, 375, 750, 335, 351, 400, 405 166, 167, ,168, 171 10, 12, 14, 287
3 RAC-362/125 125 362 250 500, 510, 555, 610, 710, 715 202, 302, 401, 402 89, 387, 412
4 RAC-362/175 175 362 250 500, 510, 555, 610, 710, 715 202, 302, 401, 402 89, 387, 412
5 RAC-362/200 200 362 250 500, 510, 555, 610, 710, 715 202, 302, 401, 402 89, 387, 412
6 RAC-427/115 115 427 425 248, 263, 264 587, 650
7 RAC-427/165 165 427 425 248, 263, 264 587, 650
8 RAC-427/215 215 427 425 248, 263, 264 587, 650
9 RAC- 361 - 50 50 361 360
10 RAC - 311 -50 50 311 310
